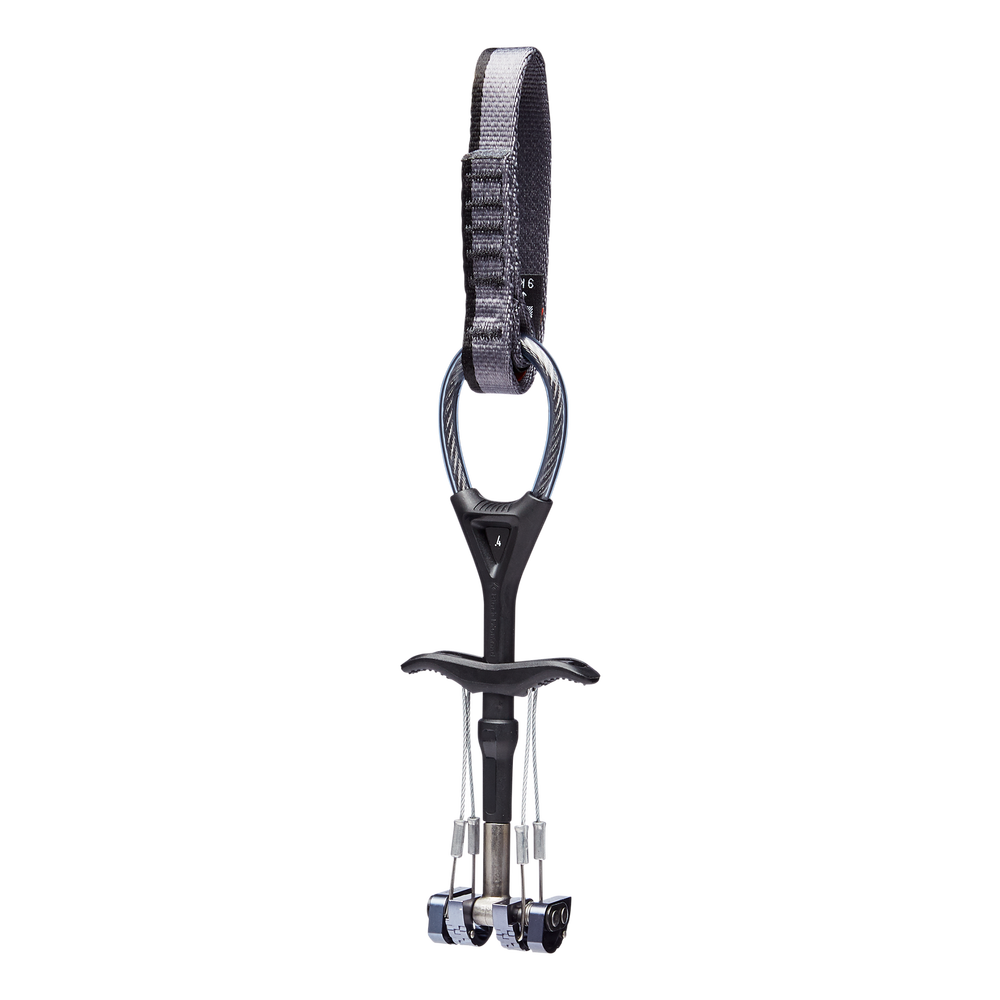

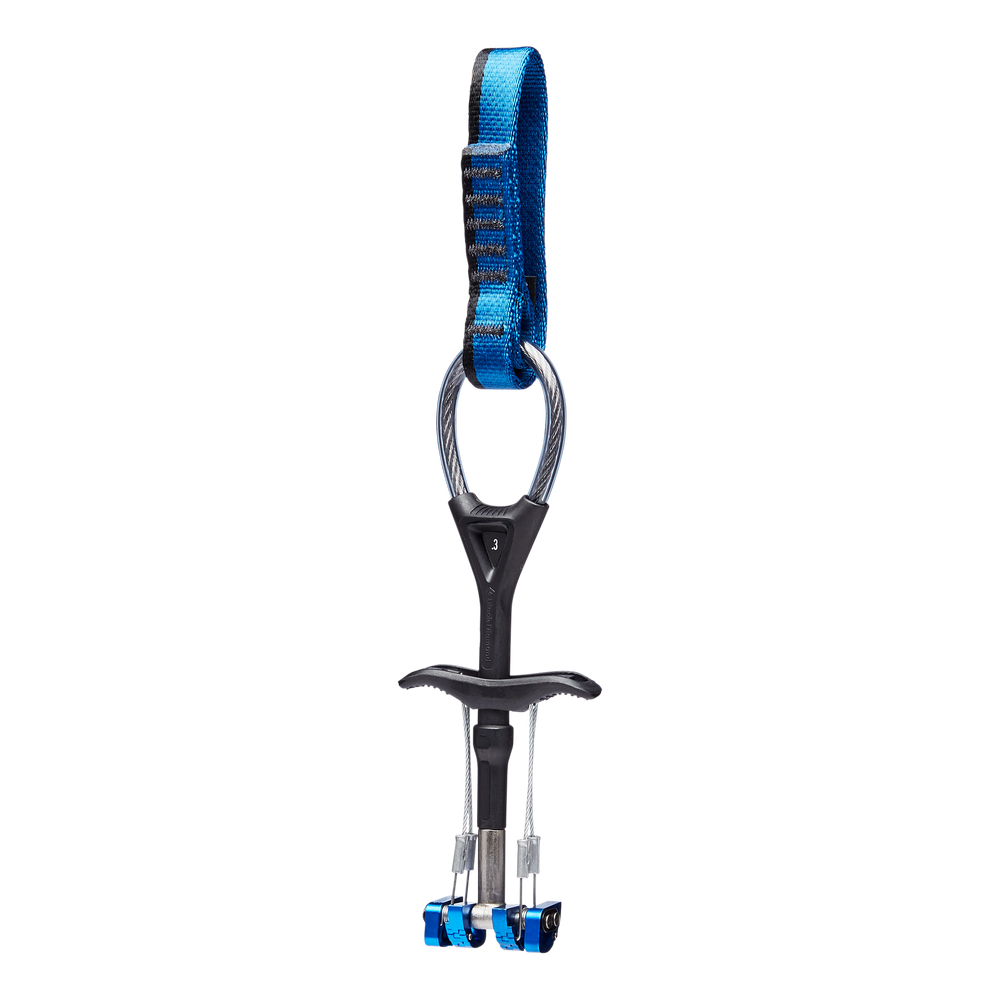

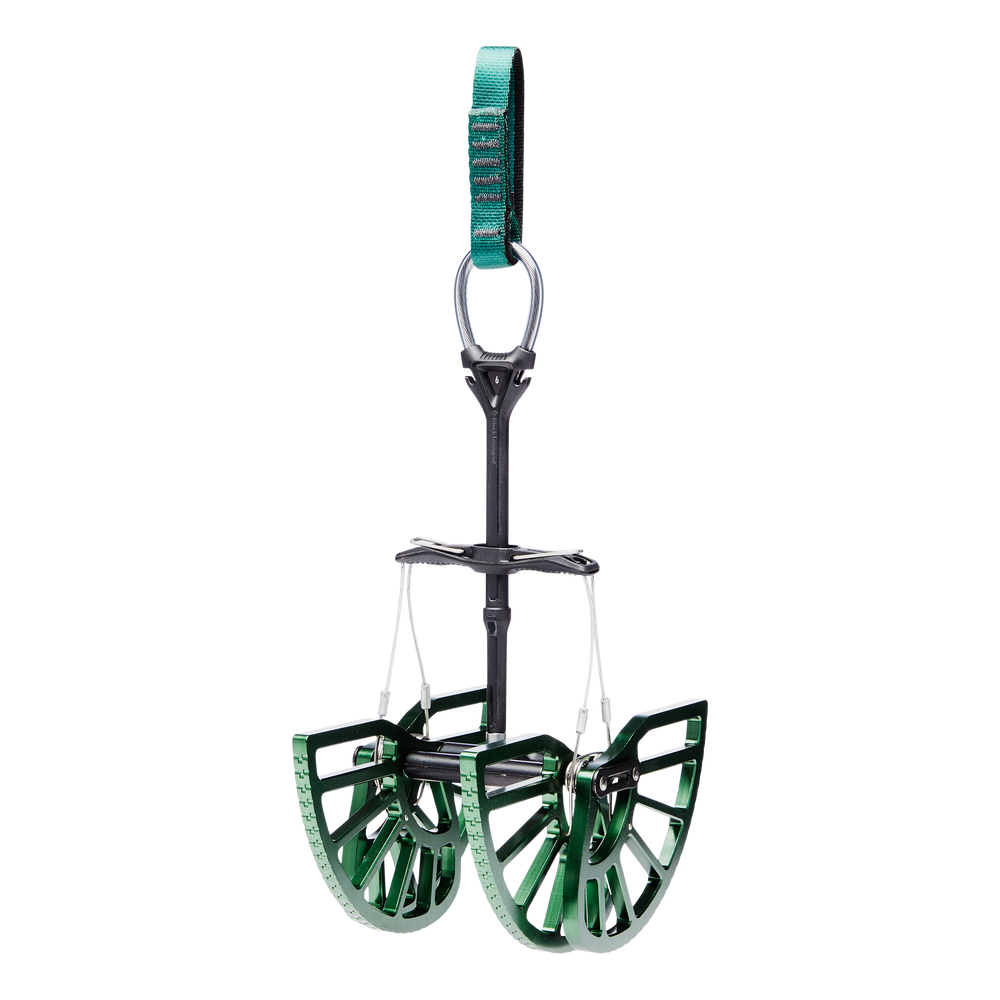

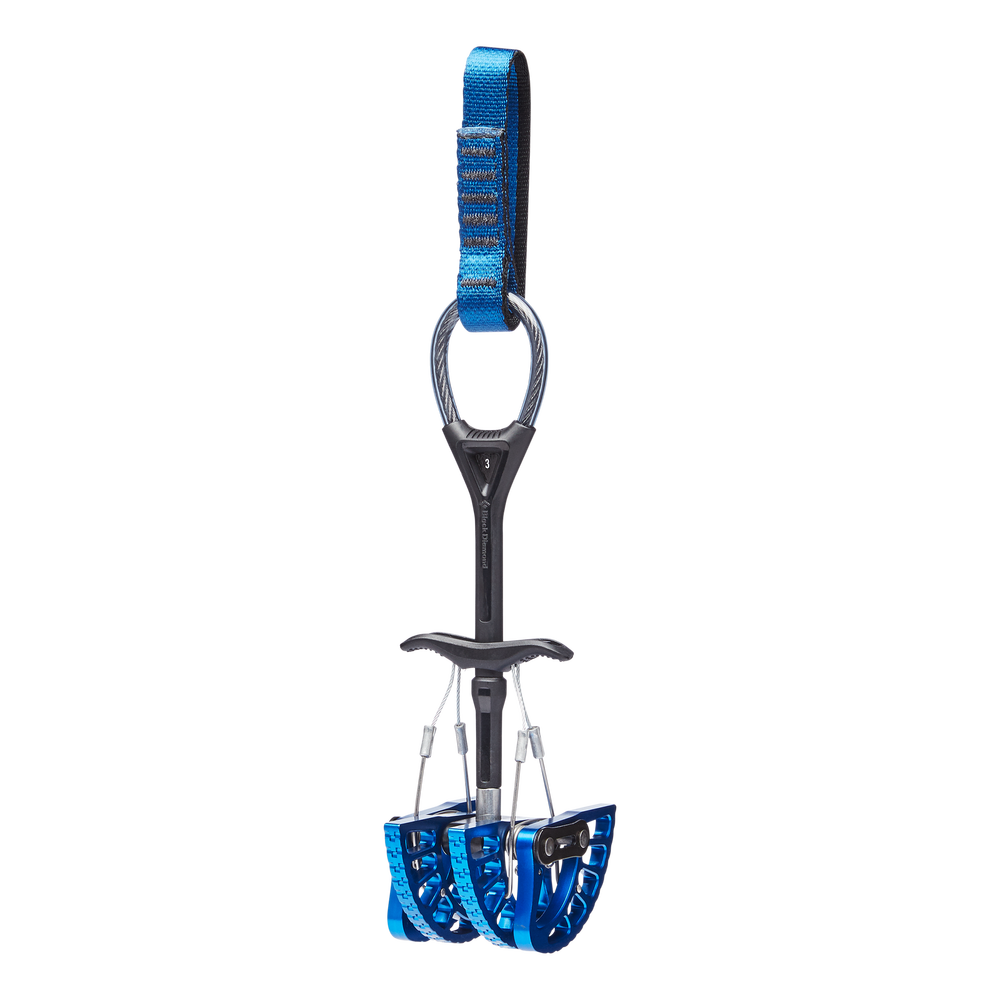

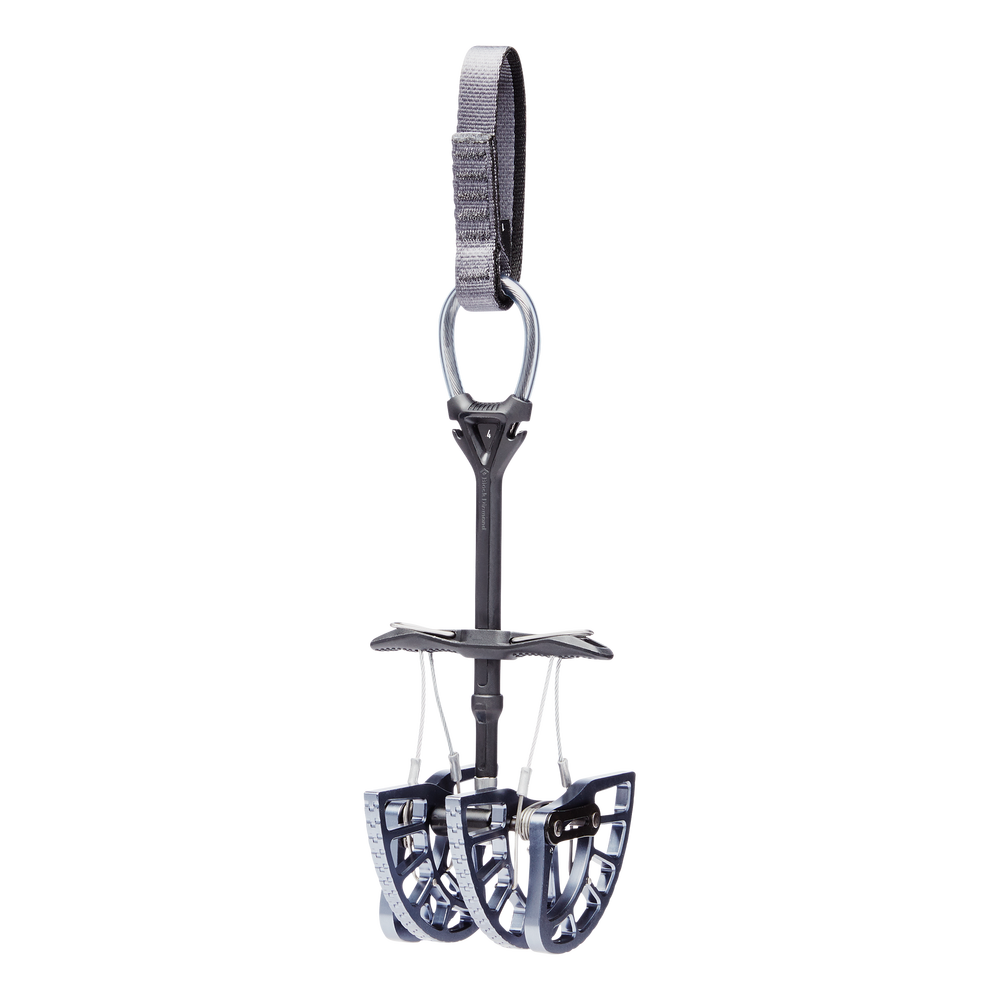

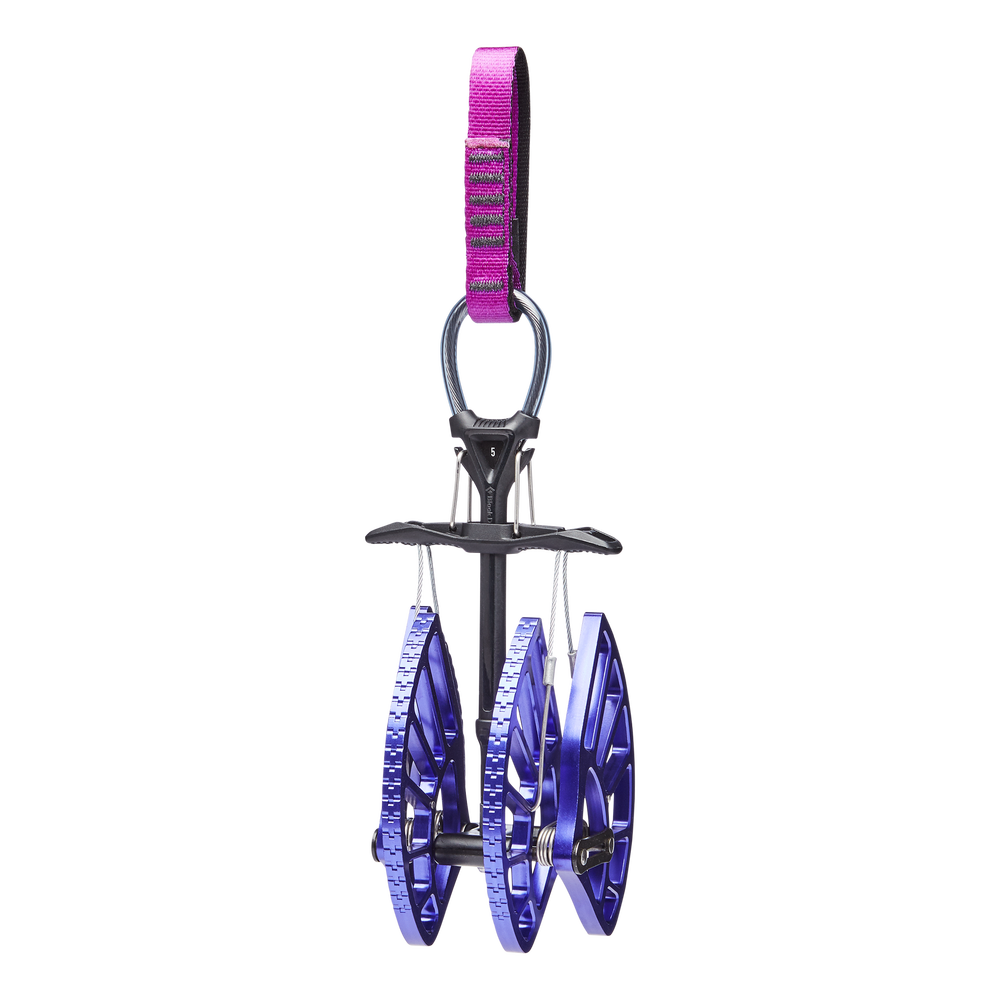

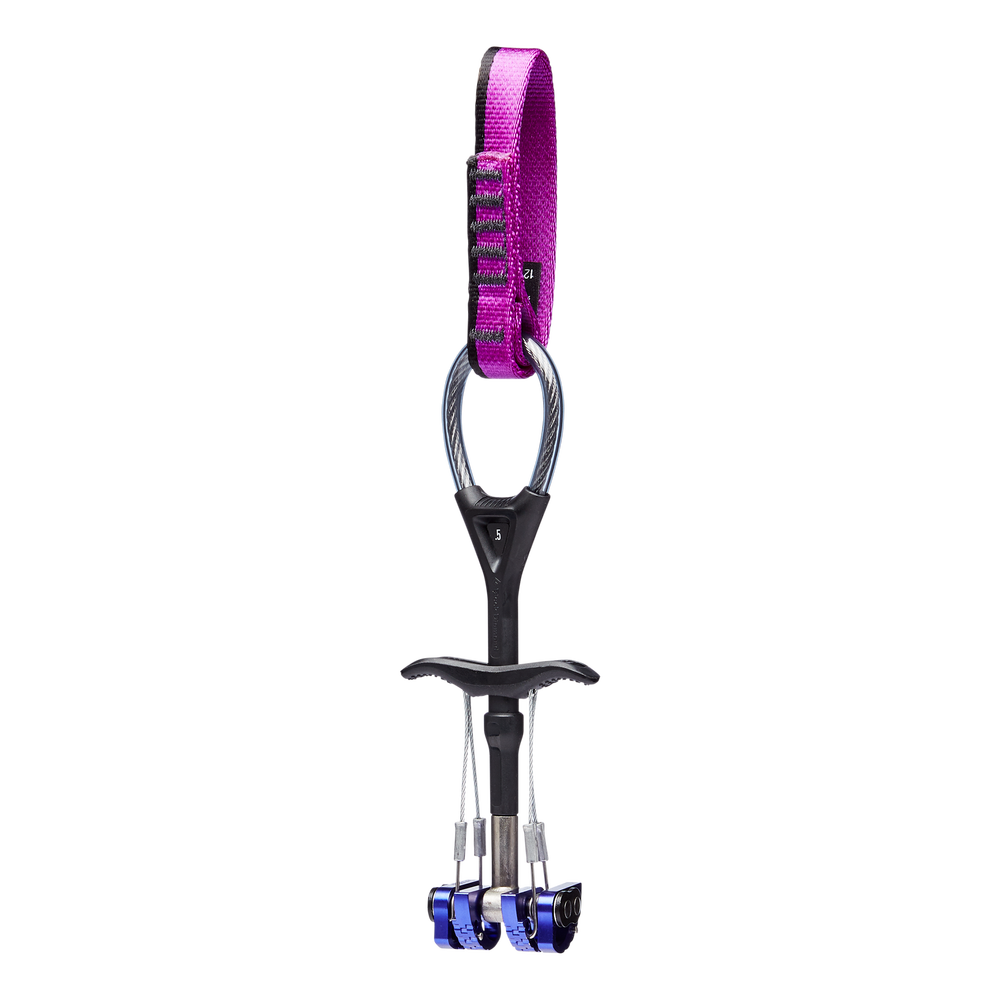

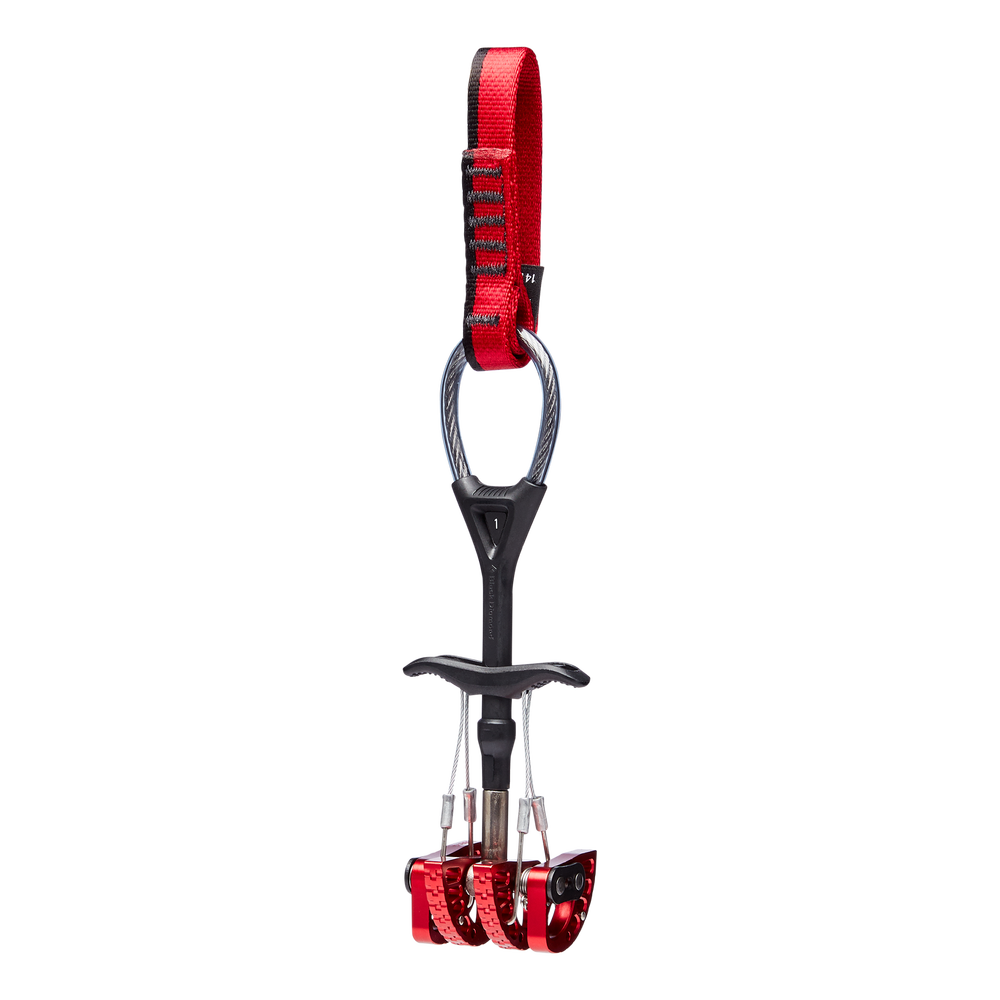

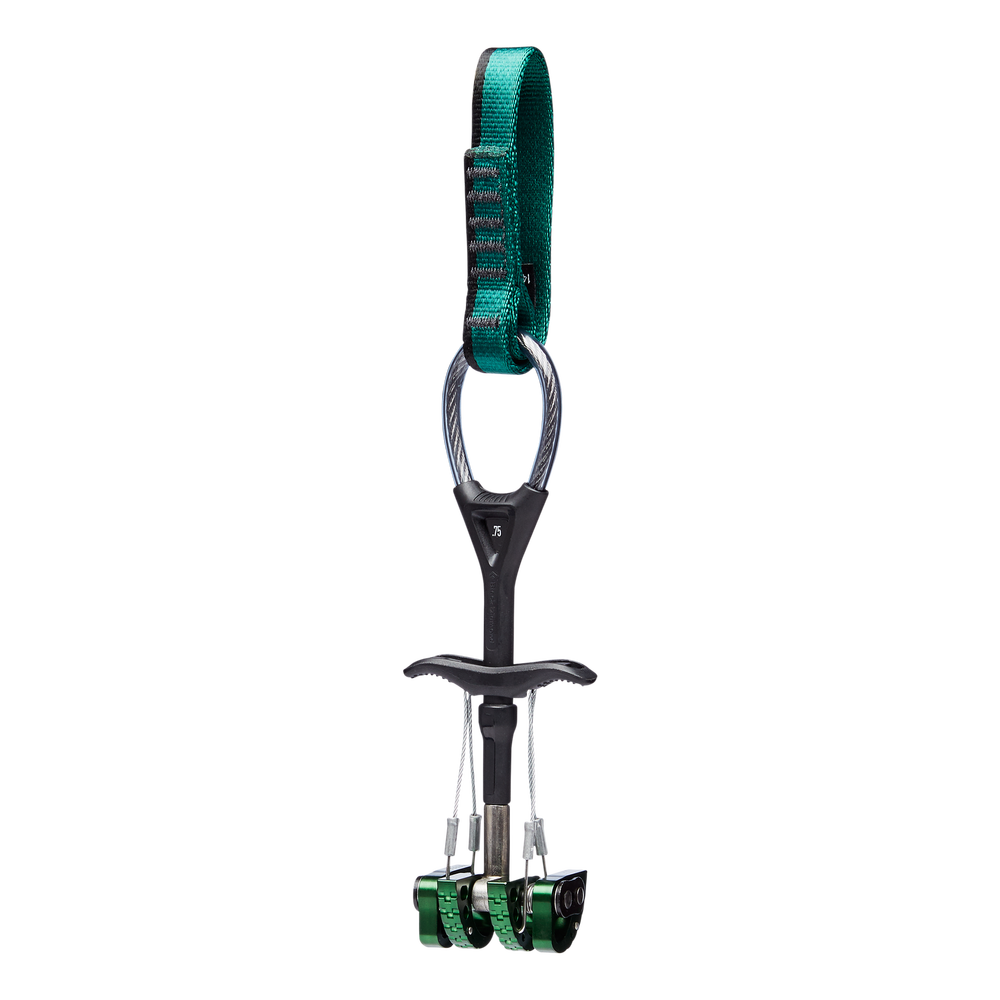

The world’s best-selling, most trusted cam just got better. The new, redesigned Camalot C4 has now upped the ante, considering it’s 10% lighter yet just as durable as before. Plus, it features a modern design that improves on the old tried-and-true Camalots. The cam’s lobes are lighter and more sculpted, optimized for strength to weight, while the slings have a visual update for easier differentiation when racking. And speaking of racking, we’re introducing a new innovative trigger keeper on sizes #4, #5, #6, #7, and #8 that keeps the big guys contracted for compact racking and immediately release when you’re ready to place. We’ve also widened the trigger as well for better handling.
- New design is 10% lighter
- Innovative trigger keeper on sizes #4, #5, #6, #7, and #8 for compact racking
- Double-axle design offers the widest range for each cam unit
- C-Loop continuous cable stem design is strong and durable
- LiteWire Rackpack available for easy racking (see Carabiners)
Tech Specs
- Display Weight[.3] 69.8 g (2.46 oz)
[.4] 77.5 g (2.73 oz)
[.5] 93 g (3.28 oz)
[.75] 107.5 g (3.76 oz)
[#1] 123.9 g (4.37 oz)
[#2] 140.3 g (4.94 oz)
[#3] 181.1 g (6.38 oz)
[#4] 257.8 g (9.09 oz)
[#5] 348.1 g (12.27 oz)
[#6] 529.9 g (16.69 oz)
- Range[.3] 13.8-23.4 mm (0.54-0.92 in)
[.4] 15.5-26.7 mm (0.61-1.05 in)
[.5] 19.6-33.5 mm (0.77-1.32 in)
[.75] 23.9-41.2 mm (0.94-1.62 in)
[#1] 30.2-52.1 mm (1.19-2.05 in)
[#2] 37.2-64.9 mm (1.46-2.55 in)
[#3] 50.7-87.9 mm (2.00-3.46 in)
[#4] 66.0-114.7 mm (2.60-4.51 in)
[#5] 85.4-148.5 mm (3.36-5.85 in)
[#6] 114.1-195.0 mm (4.50-7.68 in)
- Strength[.3] 14 kN (3,147 lbf)
[.4] 14 kN (3,147 lbf)
[.5] 14 kN (3,147 lbf)
[.75] 14 kN (3,147 lbf)
[#1] 14 kN (3,147 lbf)
[#2] 14 kN (3,147 lbf)
[#3] 14 kN (3,147 lbf)
[#4] 14 kN (3,147 lbf)
[#5] 14 kN (3,147 lbf)
[#6] 14 kN (3,147 lbf)
